Power plant steel grating

No.ST-17

Power plant steel grating is a type of steel product that uses flat steel bars arranged in a cross pattern with a certain spacing and horizontal bars, and is welded into a square grid in the middle.

Inquiry

Write a Review

The potential users of this product are yet to be conquered.

【Product Introduction】

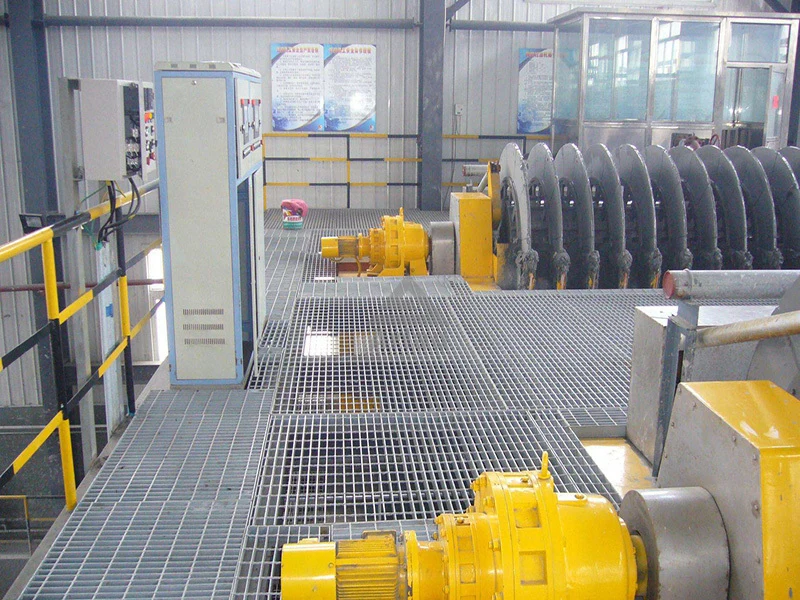

Power plant steel grating is a type of steel product that uses flat steel arranged in a cross pattern with a certain spacing and horizontal bars, and is welded into a square grid in the middle. The steel grating is mainly used as a cover plate for water ditches, steel structure platform plates, steel ladder step plates, etc. The horizontal bars are generally made of twisted square steel.

Steel grilles are generally made of carbon steel and have a hot-dip galvanized surface, which can prevent oxidation. Stainless steel can also be used for production. The steel grille has properties such as ventilation, lighting, heat dissipation, anti slip, and explosion-proof.
【Production standards】
*Surface treatment methods for steel grilles in power plants: hot-dip galvanizing, cold galvanizing, and painting.

*The production method of steel grating in power plants:Power plant steel grating is a product that is arranged by load flat steel and horizontal bars at a certain distance in longitude and latitude, welded into original plates using 200 ton hydraulic resistance welding automation equipment, and processed into customer requirements through cutting, punching, edge wrapping and other processes.

*Load bearing flat steel spacing: The center distance between two adjacent load bearing flat steels, commonly used in two types: 30MM and 40MM.

Horizontal bar spacing: The center distance between two adjacent horizontal bars is usually 50MM, 100, two types, can be produced according to customer requirements.

【Product Features】

1. Beautiful appearance: simple and concise lines. Silver exterior, modern trend.

2. Good drainage: The leakage area reaches 83.3%, which is more than twice that of cast iron.

3. Hot dip galvanizing: Strong rust resistance, maintenance and replacement free.

4. Design: The lid and frame are hinged for safety and easy opening.

5. Save investment: big span. When overloaded, it is cheaper than cast iron and saves the cost of being crushed and replaced if stolen.

6. High strength: With much higher strength and toughness than cast iron, it can be used in large-span and heavy-duty environments such as docks and airports.

7. Multiple specifications: meet different environments and loads. Span, size, and shape requirements.

Our heavy duty cast iron grating, steel gully grate, stainless steel driveway grates, stainless steel drain grate outdoor, galvanised trench grates is highly recommended by customers for its high reliability.
