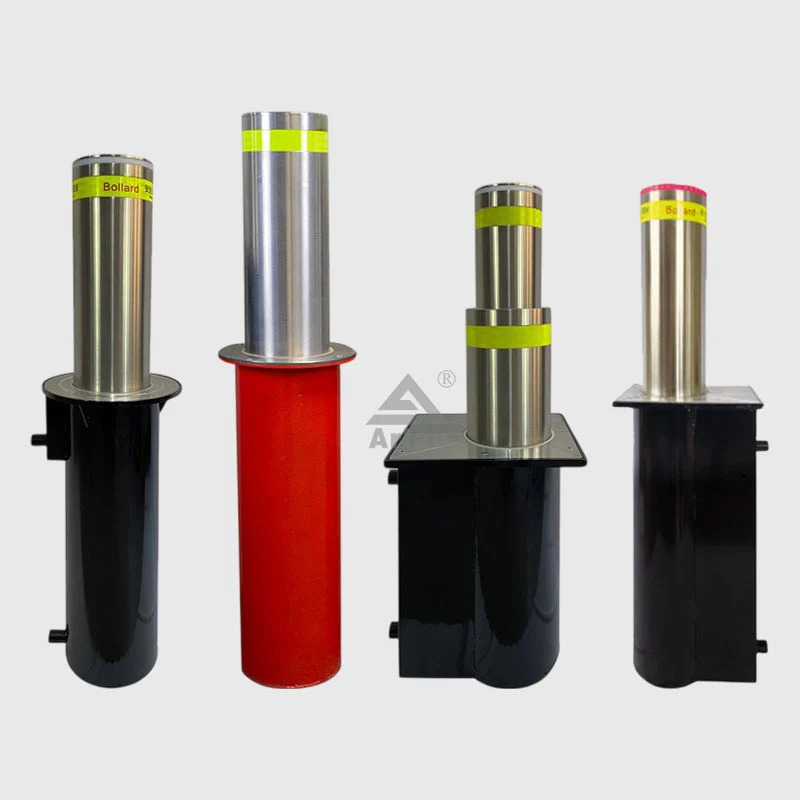

Bollard Hydraulic Lifting Bollard Road Bollard

No.: RB24

Brand: Arlau

Material: 304 stainless steel

Block height: 600mm, custom height.

Block diameter: 219mm

Lifting height: 600mm, other heights

Total height: 800mm+600mm

Wall thickness: 6mm, custom thickness

Rise time: 3-6s (adjustable)

Drop time: 3-6s (adjustable)

Power supply voltage: 220v

System power: 370w

Working temperature: -30°C~50°C

Waterproof grade: IP68

Linkage control: card reader, Bluetooth, license plate recognition, infrared ground sensor linkage, access control linkage

Product features: sturdy and durable structure, large load, stable operation, low noise, fast speed, long service life

    oops...!

    no product data.

    Go to homepage

    Split automatic hydraulic lifting column

    Arlau's bollard hydraulic lifting bollards (also known as pile building) play an important role in modern urban planning and security management. They are widely used in many aspects, from large ship berthing to pedestrian traffic management, key infrastructure protection and road differentiation.

    Drive mode: With air as the driving medium, the column is driven up and down by an external pneumatic power device.

    Drive mode: With hydraulic oil as the driving medium, there are two control methods, that is, the column is driven up and down by an external hydraulic power device or a built-in hydraulic power device.

    Electromechanical automatic lifting bollard: Drive mode: The column is driven by a built-in motor.

    Semi-automatic lifting bollard: Drive mode: The rising process is driven by the built-in power device of the column, and the descent is completed by manpower.

    Pull-up lifting bollard: Drive mode: The rising process requires manual operation, and the descent depends on the weight of the column.

    Design features: The column and the base are separated and can be retracted when no control function is required.

    Fixed column: Design features: The column is directly fixed to the road surface.

    120 (8)

     Automatic lifting shallow buried column
